Swimming Pools Waterproofing and Tile Installation System

Swimming Pool

A full system for tiling pools, ponds and other permanently submerged areas, from moisture barrier through to grout. Get the waterproofing, adhesive and finishing steps in order below, or download the full specification for your pool project.

Download Specification PDF

If you require a specification document for a larger complex project, email us to projects@actaus.com.

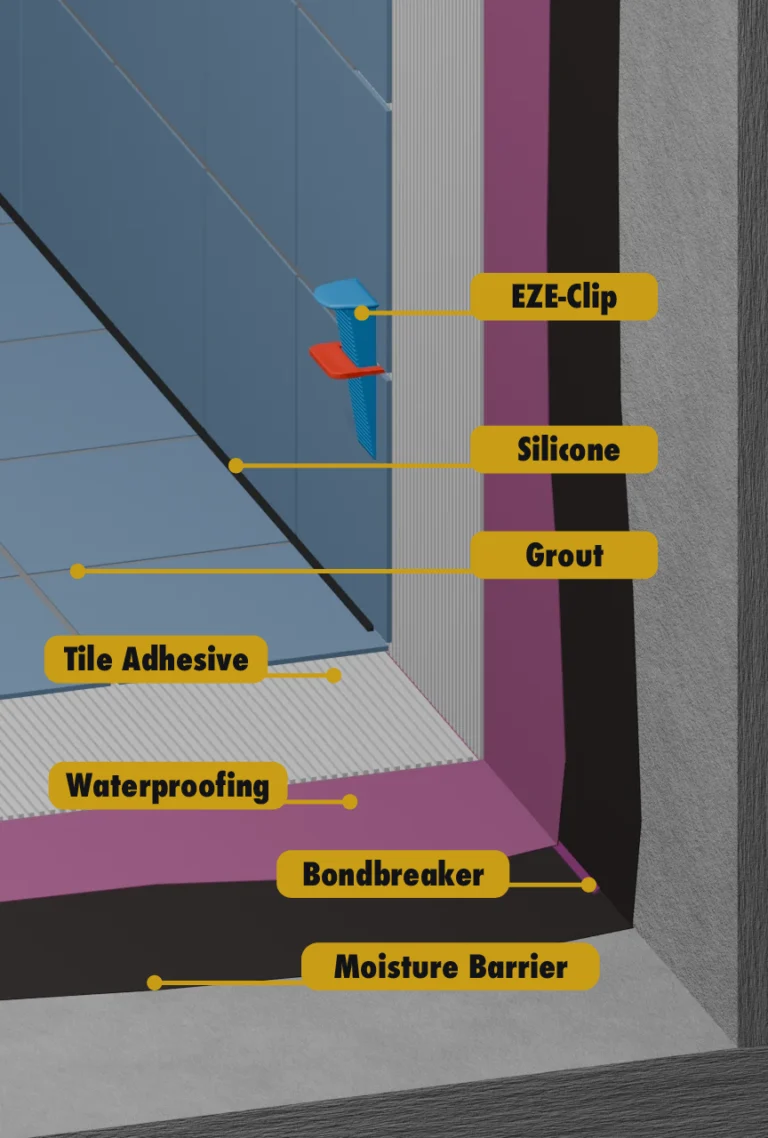

Swimming Pools Waterproofing and Tile Installation System

Ensure substrate is clean, dry, and free from dust, oil, and contaminants. Surface must be structurally sound. Priming is optional depending on condition of the substrate.

PR-2 Multipurpose Acrylic Primer

Use WP MS-PU Polyurethane Sealant as a bond breaker in the corners, FC Sheet joints, structural joints etc.

Apply minimum 2 coats of WP-1 PINK waterproofing membrane.

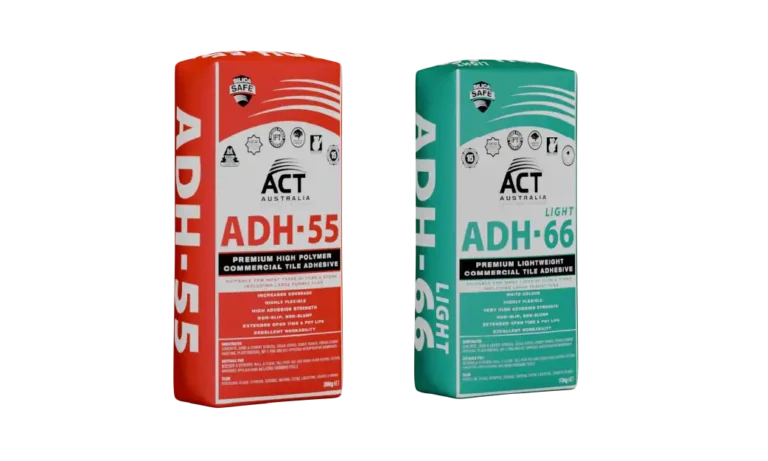

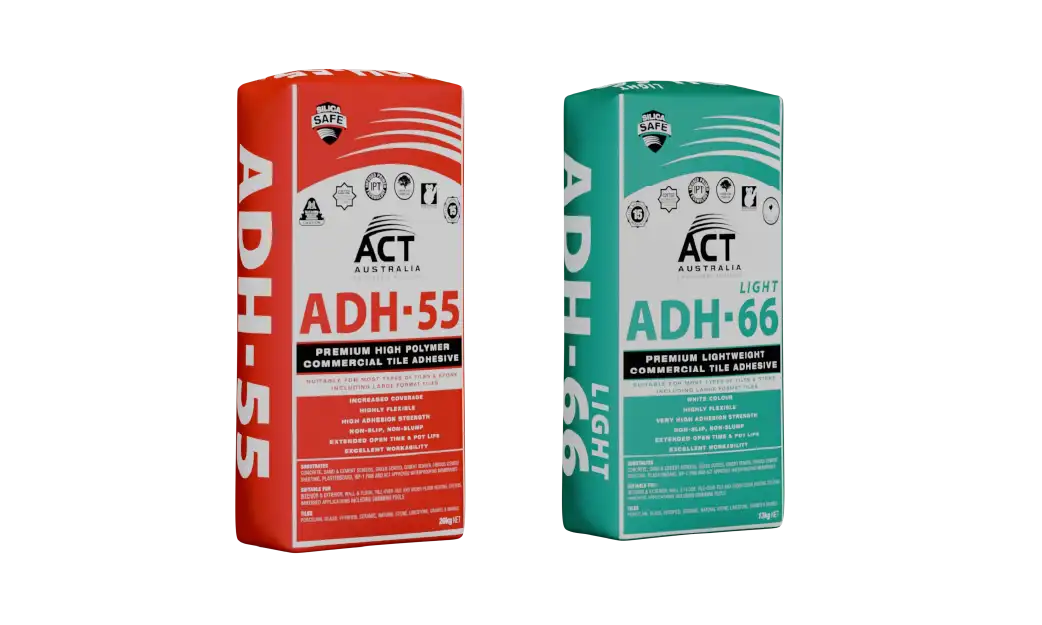

ADH-55 or ADH-66 are suitable for permanently submerged tiling applications.

Check Specification Document or product pages to select the best option for your job.

Choose from a wide range of colours of Spectrum Futura Lightweight Grout suitable for joints from 1mm to 30mm wide.

Select a colour of Spectrum Futura S-25 silicone to match the grout for all movement and perimeter joints.
